The Mother of All Lens Tests

Contents

The Event
Objective Testing
MTF--What Does it Mean?
Results
    Contrast
    Resolution
    Average Performance by Type
    Variability
    Comparison of Eastern-Bloc Lenses with Western High-End Lenses
Subjective Testing (under construction)


The Event

Photographers fall into two camps: Those who don’t care about equipment, and those who do. Fortunately, good photographers and even artists can be found in both camps, despite the natural suspicion the first group has for the second, and the general disdain the second group has for the first. Collectors invariably find themselves in the second group. Engineers who collect might as well be imprisoned there, but it is a prison of their (our) own choosing.

Four fellow prisoners gathered together one unusually mild December day in New Jersey. Statements had been made: The Flektogon wide angle lenses are excellent. The Flektogons are junk. Hands were dealt, bets made, and the call was issued. It was time to turn over the cards.

Thus, we four gathered our various collections together, yielding a test collection of 48 lenses, the likes of which may have never been assembled in one place. We had no fewer than seven 50mm/4 Flektogons, five 65mm/2.8 Flektogons, and six 180mm/2.8 Sonnars in Pentacon Six mount. As various forms of control, we added a range of other lenses, including a variety of Ukrainian lenses made by Arsenal for the Pentacon Six mount, plus a range of high-end Zeiss Oberkochen lenses for the Hasselblad and Schneider Kreuznach lenses for the Exakta 66 to act as controls.

Eschewing food, shelter, and even a place to sit, we used up the daylight photographing a test chart, burning through about a dozen rolls of film. But that was the easy part. Then came the task of stripping all the transparencies and marking them as to their source lens so that the images could be matched to the database, and the much more tedious task of looking at each image under 30 and 100-power microscopes to evaluate the test charts.

The result? A few trends bubbled up, documented in the article that follows:

Why This Test?

Why not?

Actually, the point of the test is to consider several questions previously unreachable in tests of single samples, including the tests elsewhere on this site. The objective of the test was to:

  1. Characterize, if possible, sample variation in Flektogon lenses in particular and Carl Zeiss Jena lenses in particular
  2. Compare Second World and First World optics
  3. Answer the question: Are Arsenal lenses, with their known quality control problems, more variable than Carl Zeiss Jena offerings?
  4. Squirt some oil in a range of old Pentacons

An extremely important point is that this test is NOT intended to determine which lenses are usable or not. Every single lens in the test has proven effective in making quality images. Let me say that again:

Every lens in the test is a proven performer.

A lens that performs poorly in the corners can still be quite effective when used with central subjects, and a lens that isn’t quite as sharp as another lens might still be more useful if it is faster or if its rendering is prettier. This test is narrow and technical, with no artistic recommendations to be made at all.

But there is a subtler aspect to the above statement. This is NOT a test of manufacturing variability. All the unacceptable performers have been filtered out of the test by virtue that their owners didn’t bring them (if indeed they still owned them). Thus, this isn’t a test of the variability of Mirs, but a test of the variability of usably good Mirs. Thus, this test does not constitute a risk analysis of buying an unknown lens. All the warnings about buying some lenses from sources that allow a return, or for cheaply enough to manage the risk, still apply.

Lens Database

The lens database in shown in Table 1.

Lens

Serial No.

Comment

Year Made

Hartblei PCS 45/3.5

0055

with Pentax shade

2000

Hartblei PCS 45/3.5

00148

with Pentax shade

2000

Arsenal Mir-26 45/3.5

832517



1983

Arsenal Mir-26 45/3.5

921284



1992

CZJ Flektogon 50/4

9860692

Enameled black (Type IV), multicoated, not marked MC

1976

CZJ MC Flektogon 50/4

6325

Type IV MC

1985

CZJ Flektogon 50/4

9859253

Type IV, not multicoated, not marked MC

1976

CZJ Flektogon 50/4

9065540

Zebra (Type III)

1971

CZJ Flektogon 50/4

9853279

Zebra (Type III)

1975

CZJ Flektogon 50/4

9125623

Zebra (Type III)

1973

CZJ Flektogon 50/4

8969236

Zebra (Type III)

1971

Zeiss T* Distagon 50/4

7433589

FLE for Hasselblad



Zeiss T* Distagon 50/2.8

6759222

FLE for Hasselblad



CZJ Flektogon 65/2.8

7316191

Zebra (Type III)

1967

CZJ Flektogon 65/2.8

7316382

Type II

1967

CZJ Flektogon 65/2.8

5550115

Type I

1958

CZJ Flektogon 65/2.8

7315600

Zebra (Type III)

1967

CZJ Flektogon 65/2.8

6372727

Type 1 MC'd by Hartblei

1961

Hartblei  65/3.5

0020



2004

Arsenal Mir-38 65/3.5

860780



1986

Hartblei PCS 65/3.5

0046

for Hasseblad mount

2000

Arsenal Mir-3 65/3.5

See Comment

Dan's sticker covers serial number



Zeiss T* Distagon 60/3.5

7393716

CF for Hasselblad



Arsenal Arsat PCS 55/4.5

00915



2001

Schneider Curtagon 60/3.5

14180083

for Exakta 66

 1986

Schneider Xenotar 80/2.8

14203884

for Exakta 66

 1986

Exakta Biometar III 80/2.8

48394

Exakta 66 trim

 1990

CZJ MC Biometar 80/2.8

15876



1983

CZJ Biometar     80/2.8

8569883

Zebra (Type III)

1970

Arsenal Arsat 80/2.8

9501809



1995

Arsenal Volna 80/2.8

9300129



1993

Zeiss T* Planar 80/2.8

7137270

CF for Hasselblad



Arsenal Vega 90/2.8

807976



1980

Hartblei  150/2.8

0005



2003

Arsenal Kaleinar 150/2.8

910883



1991

Schneider Tele-Xenar 150/4

14146224

for Exakta 66

 1985

Zeiss T* Sonnar 150/4

7551542

CF for Hasselblad



Zeiss T* Sonnar 150/4

6918740

CF for Hasselblad



Zeiss T* Sonnar 150/2.8

5882471

F for Hasselblad 2000

 1975

Zeiss T* Sonnar 180/4

7949528

CF for Hasselblad



CZJ Sonnar 180/2.8

9146514

Zebra (Type III)

1972

CZJ MC Sonnar 180/2.8

10161869

with Hasseblad compendium shade

1978

CZJ MC Sonnar 180/2.8

3147

With custom shade

1983

CZJ Sonnar 180/2.8

6256251

Type 1, MC'd by Hartblei

1961

CZJ MC Sonnar 180/2.8

13430

Type IV

1987

CZJ Sonnar 180/2.8

8597220

Zebra (Type III), with custom 'blad mount

1970

CZJ Sonnar Preset 180/2.8

4830400

custom 'blad mount

1956

CZJ Sonnar Preset 180/2.8

3273206

custom 'blad mount

1949

Meyer  180/4

xxx381





Table 1. Lenses Tested.

Most of the Arsenal and Hartblei lenses were based on optics formulated in the 1960’s or 1970’s, and are thus newer than the formulations used by Carl Zeiss Jena. But the construction quality of the Arsenal lenses is generally thought to be poor.

The design and formulation of the Carl Zeiss Jena lenses took place following World War II, as follows:

Carl Zeiss built lenses at the Jena factory since the late 1800’s, but after World War II, Jena found itself in the Soviet sphere. A number of Zeiss technicians and scientists escaped (with American help) into the west, forming a company that would eventually become known as Carl Zeiss, with production facilities in Oberkochen, (West) Germany. Carl Zeiss Jena continued to produce lenses, and the two companies warred over who would be able to use the Carl Zeiss label. In the end, they both did, at least in some places. After the unification of Germany following the end of the Cold War, the two Zeisses merged once again, but lens production in Jena stopped in 1991.

The Zeiss Oberkochen lenses in the test were not dated, but are of relatively recent design and most are still current models. All had the T* coating and several had floating elements.

Production and formulation years for the Carl Zeiss Jena lenses were taken from the production cards issued to the technicians who did the lens assembly, as documented by Hartmut Thiele in Fabrikationsbuch Photooptik II—Carl Zeiss Jena.

Production years for Arsenal lenses were taken from the serial numbers. Production years for Hartblei lenses were estimated from when the lenses were made available to their owners, most of whom bought them new or from their original owners.

The Tests

Two approaches were used to evaluate lenses. The first was to specifically, and as objectively and quantitatively as possible, evaluate the performance of the lenses using a formal testing method. The second was to make images of a common scene with a selection of images to serve as the basis for subjective comparisons.

Objective Testing

The method used for this test was as outlined by Norman Koren in his online article on lens testing. He provided test charts that could be printed and arranged on a presentation board to serve as a test target.

A complete discussion of the chart and how it is used is on his web site, here.

The board was 56 inches wide and 30 inches tall, and the camera was positioned such that the right edge of the board was in the center of the frame and the left edge at the edge. Thus, the cameras were positioned to focus on an area about ten feet wide. Distance to the chart range from about 8 feet for 45mm lenses to about 31 feet for 180mm lenses. The test chart was designed to be five millimeters wide on the film, requiring a 50:1 reduction from the chart, which printed to about 10” wide.

The test chart was marked, using sticky notes, with the last three digits of the serial number and the aperture of the lens. Exposures were also carefully noted as the exposures were made, so the marking on the film served as a backup.

The chart was placed in full sun, and this proved to be a problem. With the Fuji Velvia film used, it was impossible to achieve f/2.8 during some of the testing because conditions were too bright. Thus, the Sonnars were tested at f/4. The 65mm Flektogons were tested at f/2.8, however, and, coupled with shutter accuracy concerns on the test camera, resulted in overexposure. This may have affected the interpretation of the results in the center.

The test camera was an early Hanimex Praktica 66 that had been recently, extensively and carefully reworked and had proved itself in recent and considerable field use. The full sun, however, required a shutter speed of 1/1000, and this speed is a problem on most medium-format cameras with mechanically regulated focal-plane shutters. The Exakta 66 Model III that had been originally proposed for the test demonstrated a frame counting issue on test day. Based on my prior shutter tests, I should have used the 2001-model Kiev 60, which has an accurate 1/1000 shutter speed (and all the others are accurate, too), but even better would have been the Pentax 645 with its electronically regulated shutter.

In future tests, the preferred approach would be to light the test chart with studio strobes instead of regulating the exposure with the shutter. I had the equipment available to do so at the test, but held it in reserve for foul weather. Live and learn.

Test Protocol

(In this article, lines/mm should always be interpreted as line pairs/mm).

The test attempted to identify the critical resolution of the lens at two levels of contrast, denoted by the Modulation Transfer Function. This is the opposite of how most MTF tests are done. With optical bench testing equipment (designed and invented by Carl Zeiss Oberkochen), The MTF at various distances from the center of the frame are measured against known spatial frequencies of line pairs. So, they find out the accuracy of the transmission of line pairs at, say, 40 lines/mm, 20 lines/mm, and 10 lines/mm.

In this test, done without bench testing equipment, we used Norman Koren’s charts. These charts provide a range of spatial frequencies from 5 to 200 lines/mm, with comparison strips at MTF of 50% and MTF of 10%. Thus, we found the highest spatial frequency that could achieve an MTF of 50% and 10%. Since most MTF tests provide MTF values of 70-90% at low spatial frequencies, our results are not immediately comparable to published results. This does not diminish the value of our approach.

Each lens was mounted and focused at full aperture, with the focus objective being to be able to resolve as many of the lines in the target near the center as possible. This is a critical focusing method that is more accurate than split prisms or microprisms.

Each lens was tested at maximum aperture (except for the Sonnars, which were tested at f/4), and at f/8. F/8 was selected because any good lens should be performing excellently by f/8, but the aperture isn’t small enough to mask lens deficiencies or create visible diffraction.

MTF—What Does It Mean?

MTF stands for Modulation Transfer Function. It is, simply, how much of the original test chart makes it to the film. Rather than use hard-edged bars and spaces as with, say, the popular USAF test chart, a proper MTF test uses a density wave varying from black to white according to a sine wave. As the dark bands get closer together, the aberrations of the lens smear them into the white areas between the lines. The dark bars are thus diluted by the white areas, and the white areas are soiled by the dark areas. When the difference between black and white, which is near 100% on the target, reaches only 50%, then that frequency is the critical lens resolution at MTF 50%.

Contrast—MTF 50%

Most lens tests are conducted using some variation on the popular USAF lens test chart sold by Edmund Scientific and others. Most testers report a successful test if they can just make out the line pairs on the test chart when inspecting the film under a microscope. This is how the other lens tests on this site were conducted. In practice, though, a lens’s ability to produce line pairs that can just be made out is a fairly low standard, and one that does not correspond to the perceived sharpness of a lens very well.

Measuring critical resolution at MTF 50% is a standard much closer to what viewers will or won’t perceive as sharp rendering.

To explain the value of measuring critical resolution at  MTF 50%, let’s work back from a print. At close focus, most adults who don’t yet need bifocals can clearly resolve about five lines/mm with the naked eye. Proper viewing distance of a print, however, is when the print subtends an angle of about 45 degrees to the viewer. Thus, proper viewing distance for an 11x14 print is about 17 inches. This is about twice as far away as minimum inspection distance.

Taken at proper viewing distance, most viewers can therefore clearly resolve perhaps two or three lines/mm on the print with the naked eye. Achieving a print of that size requires a 7x enlargement from a medium-format frame, so the film must be able to record about 15 or 20 lines/mm to be perceived as sharp on a print of that size.

But viewers define “sharp” as seeing a contrasty edge between light and dark. It is possible for a lens to have high resolving power without appearing to be that sharp, if the edges are faded as a result of reduced contrast. Thus, an MTF of 50% becomes a standard of the contrast needed to produce apparent sharpness in a print of moderate size viewed normally. And an MTF 50% critical resolution of 15 or 20 lines/mm will produce prints of 7x enlargement (11x14 for medium format) that will appear to be sharp when inspected from proper viewing distance. Critical resolution of 35 lines/mm at MTF 50% is enough to provide apparent sharpness even when inspected closely by adults with good vision.

But the numbers from this test always look awful compared to resolution numbers we are accustomed to seeing. Keeping this fact in mind will make it easier to tolerate:

The reported resolution of Fuji Velvia at MTF 50% is 37 line pairs/mm.

In the test, we measured no MTF 50% resolutions higher than that, so nothing in our test challenges the above statement. But given that Velvia is the film used when absolute image quality is the goal, the above statement should give some context to MTF 50% resolution values. Anything on the same planet as 30-40 lines/mm at MTF 50% is as good as it gets. Anything above 15 is probably mighty fine.

Resolution—MTF 10%

As mentioned above, most testers who evaluate test charts look for the minimum threshold of visibility. This corresponds to a variation in light and dark of about 10%. Thus, the MTF 10% critical values presented in this test are reasonably comparable to most published lens resolution values, including those in the lens tests elsewhere on this site.

Norman Koren’s Lens Test Chart

The Koren chart was described previously, but another few items are worth noting. One is that the test chart is presented such that an MTF 50% sample strip is provided on the chart (at about 10 lines/mm spatial resolution) for comparing against the line pairs at the critical frequency. This makes it possible for the comparison to be made even when the density of the chart varies from the ideal. Because of exposure variations, this feature was critically important.

Even so, some images showed a complete loss of visibility of the test lines. This was apparently caused by overexposure, and in particular affected the wide-open results with the 65mm/2.8 lenses. Thus, those results may be reported herein as worse than they really should be. The notion that the test chart is readable over a range of densities is theoretical and was not tested explicitly.

Also, for many lenses the labeling on the test chart was not readable on the film. As a result, I compared the position of the critical line pairs with other landmarks on the test chart.

It should be noted also that the test chart is expected to be 5mm on the film. In all cases of the test, it was about 85% of that value, because the camera was positioned based on the frame edges shown by the focus screen, which only shows about 85% of the full frame on the test camera.

Because of the variability in densities and the subtlety of doing MTF comparisons, results are not expected to be more accurate than perhaps 20% one way or the other, taken on a logarithmic scale.

Results

The results of the test have been evaluated in a variety of ways, and may be further evaluated as discussions about the results emerge. Primarily, all lenses were evaluated for contrast (MTF 50% critical resolution) and resolution (MTF 10% critical resolution), near the center of the image and at the corner, with the aperture wide open and set to f/8.

Gaps in the charts are the results of mishaps. In this test, the most common mishap was overlapped images. One roll was apparently misloaded (I was the one who loaded that roll), causing overlapped frames. Also the Hartblei back, which was supposed to be Hasselblad compatible, overlapped frames when used on a Hasselblad.

Contrast

Figure 1 shows contrast at f/8, and this portion of the test more than any other describes the apparent sharpness of the lens in practical use. Contrast is the critical resolution, in lines/mm, at a modulation transfer of 50%. The blue bars in the chart were taken from the test chart near the center of the frame, and the purple bars were taken from the test chart near the corner of the frame. The bars are arranged in increasing focal length, with the 45 lenses at left and the 180mm lenses at right. Some trends emerge immediately:

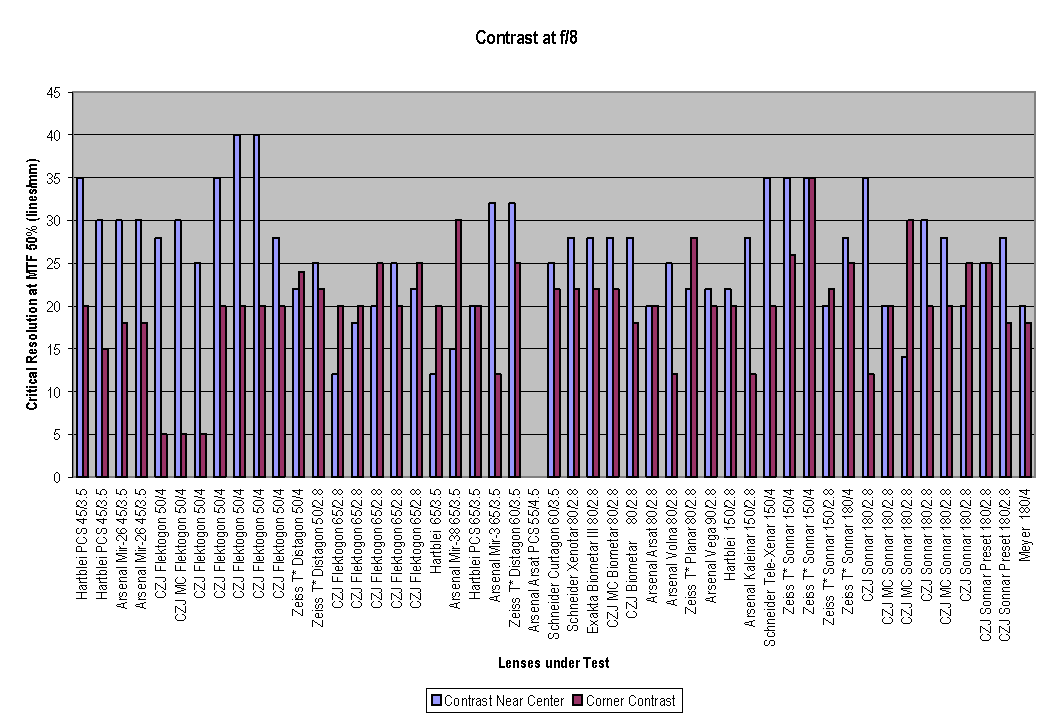

Figure 1. Contrast: Critical Resolution at MTF 50%, f/8.

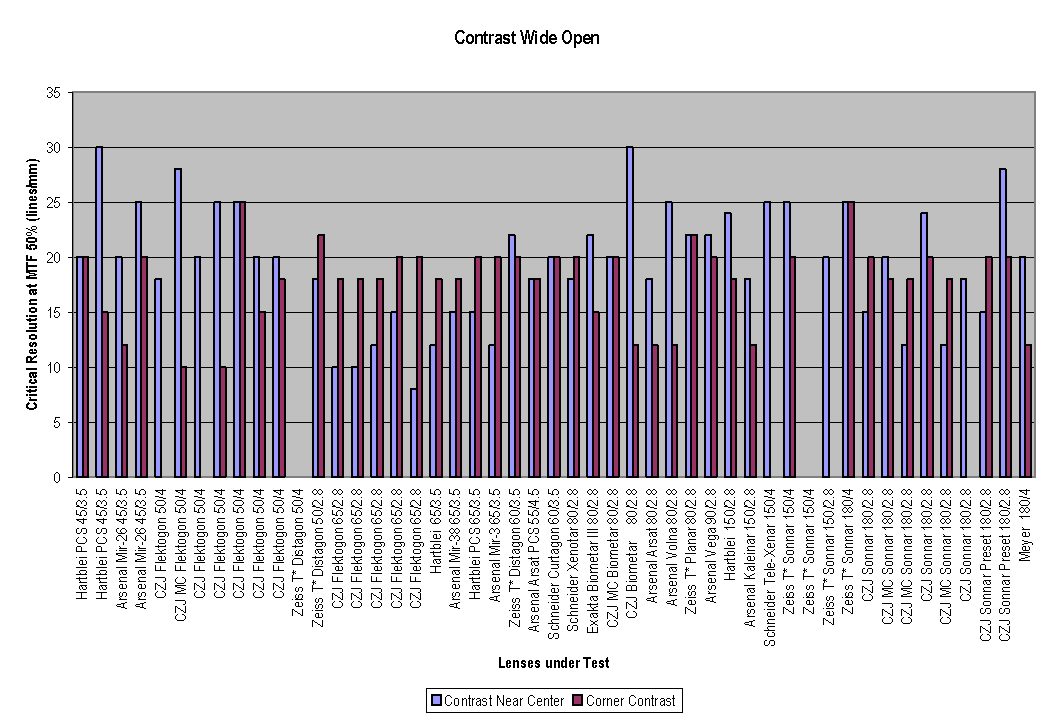

The wide-open test was little more demanding, of course. Figure 2 shows contrast results at maximum aperture. Wide open, a couple of the 50mm Flektogons could not produce MTF 50% at any resolution, yet others were strong performers. The 65mm lenses showed stronger performance in the corners than in the center, but this is likely an artifact of overexposure, where the corners benefited from vignetting. Wide open, the Jena Sonnars were a little more comparable to the high-end telephotos, which is where their reputation is strongest. Many of the lenses did not exhibit good enough contrast to make a sharp-appearing 11x14 when used wide open.

Figure 2. Contrast: Critical Resolution at MTF 50%, Near Maximum Aperture.

Resolution

As previously described, resolution is the just-discernable variation in line pairs, corresponding to an MTF of 10%. Figure 3 shows resolution at f/8, which might also be thought ultimate resolving power. These results should be similar to most test-chart results that are published. Some highlights of the results include:

Figure 3. Resolution: Critical Resolution at MTF 10%, f/8.

Wide open, the results are similar to stopped down, but with consistently lower values as expected. Figure 4 shows resolution at maximum aperture. One of the Flektogons was surprisingly good (even if it wasn't that great at MTF 50%), but the resolution king was the Zeiss Oberkochen T* 180/4 lens for the Hasselblad.

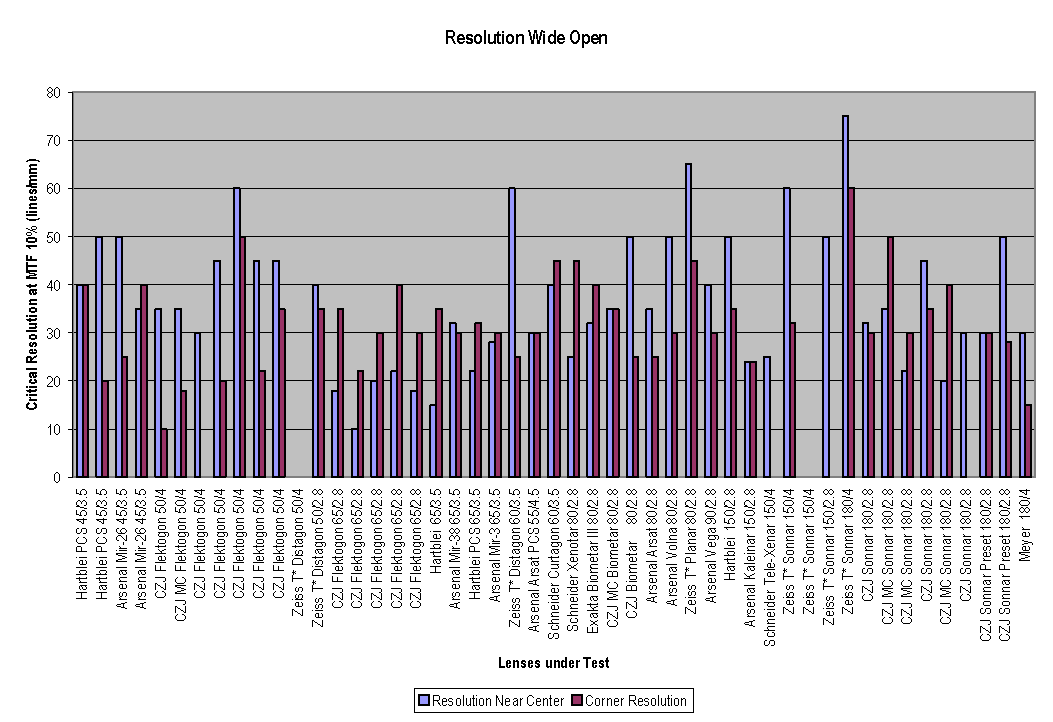

Figure 4. Resolution: Critical Resolution at MTF 10%, Near Maximum Aperture.

Average Performance By Type

One of the objectives of the test was to compare types of lenses. In this test, results are averaged across groups of similar lenses, as shown in Figure 5 for all test protocols. The groups include:

Results include:

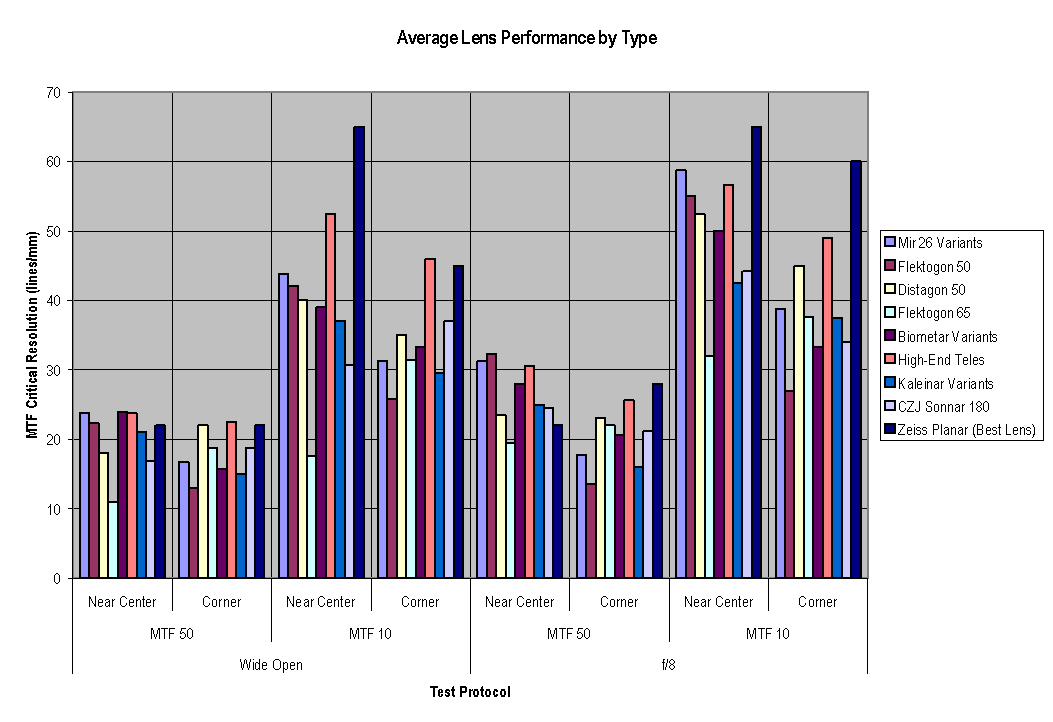

Figure 5. Average Lens Performance, Grouped into Lens Type.

Variability

Any time someone posts images or test results, the chorus tunes up on the theme that sample variation should overwhelm any of these results. Since this test had a good sampling of lenses in each category, we were able to evaluate whether the variability was larger than the general results. Remember that only usably good lenses were included in the test in the first place, so this is a test of the variability of lenses their owners think are worthwhile. That doesn’t mean some of the lenses not represented in the test are better served adding density to a landfill than adding density to a camera bag.

All the variability charts show the average for the class, plus a range of one standard deviation above and below that average. The use of standard deviation rather than high and low extremes from the test is an attempt to filter out outliers and characterize variability more fairly.

From a statistical point of view, if the variability of lenses is normally distributed, and if our small samples represent the distribution of the population, then the range of two standard deviations surrounding the mean will sweep up about 67% of the possibilities. Both of these assumptions are highly questionable, and even the Mother of All Lens Tests doesn’t provide enough data to test them. Thus, there is little that can be drawn that would satisfy statisticians. Generally, if the variability of one class of lenses falls mostly in the range of another class, then we should interpret that as meaning our data doesn’t show much difference. If the variability falls mostly outside the range of another class, then we can reasonably conclude that our samples reveal a difference.

By Type

Figure 6 shows the variability within each class of lens in center contrast. As with the previous charts, this chart probably says the most about how sharp prints made with these lenses will appear in the center of the image.

In terms of apparent sharpness in the center of the image:

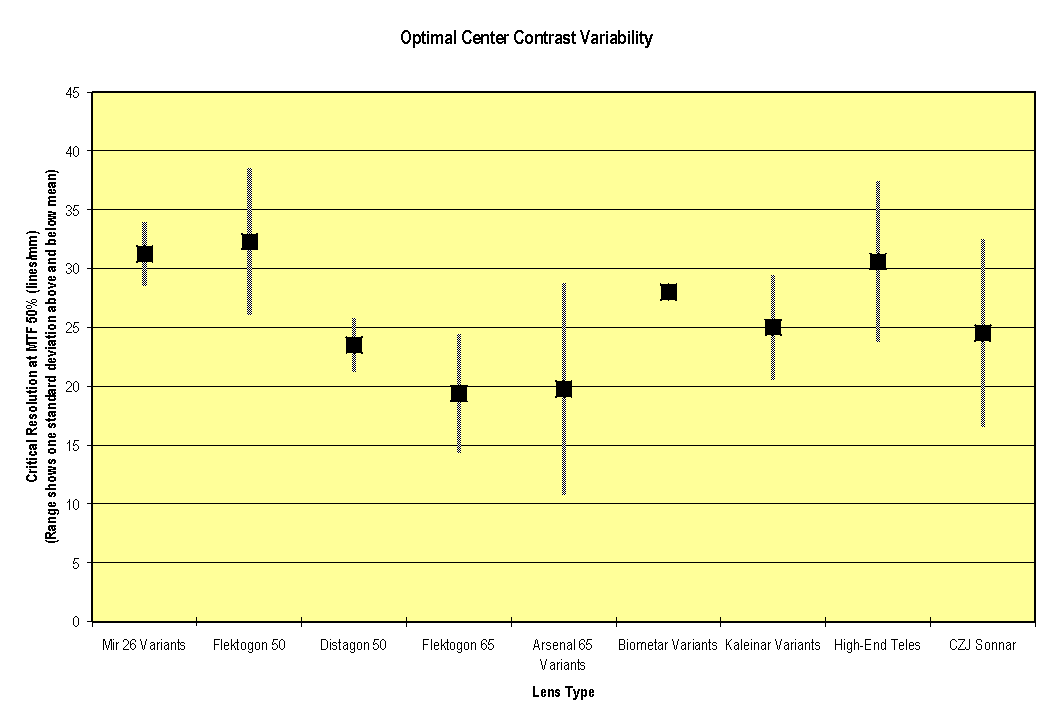

Figure 6. Variability of Optimal Center MTF 50% Performance by Type.

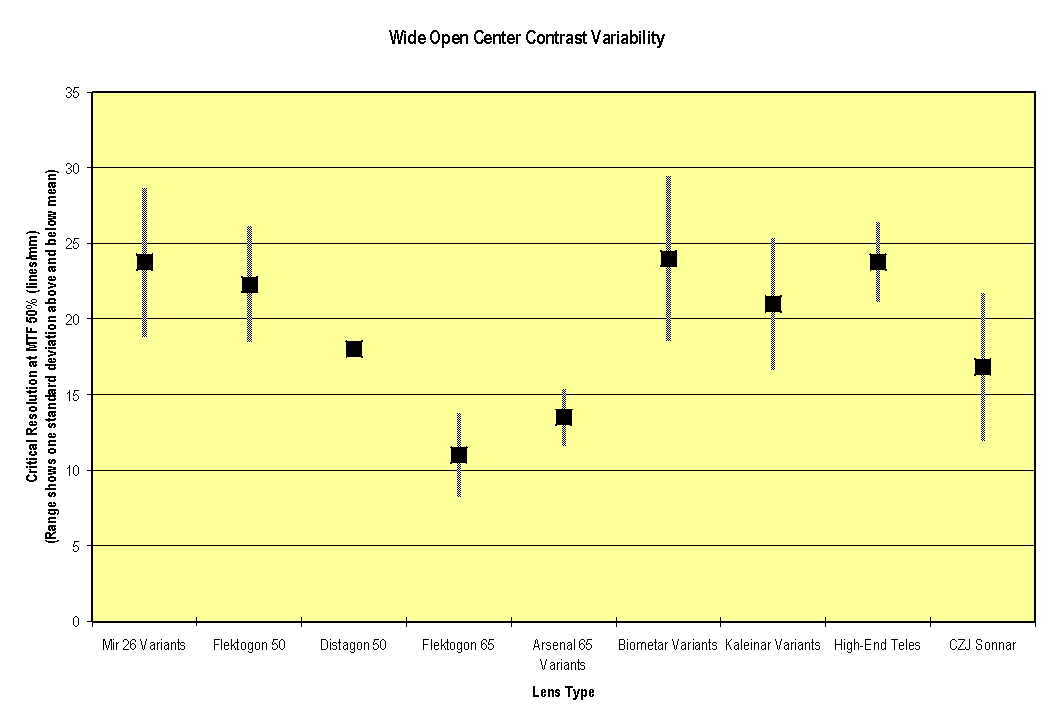

Figure 7 shows the variability of center apparent sharpness wide open. Results were similar to the central contrast stopped down.

Figure 7. Variability of Wide Open Center MTF 50% Performance by Type.

Figure 8 shows the variability of ultimate resolving power in the center of the frame. Results include:

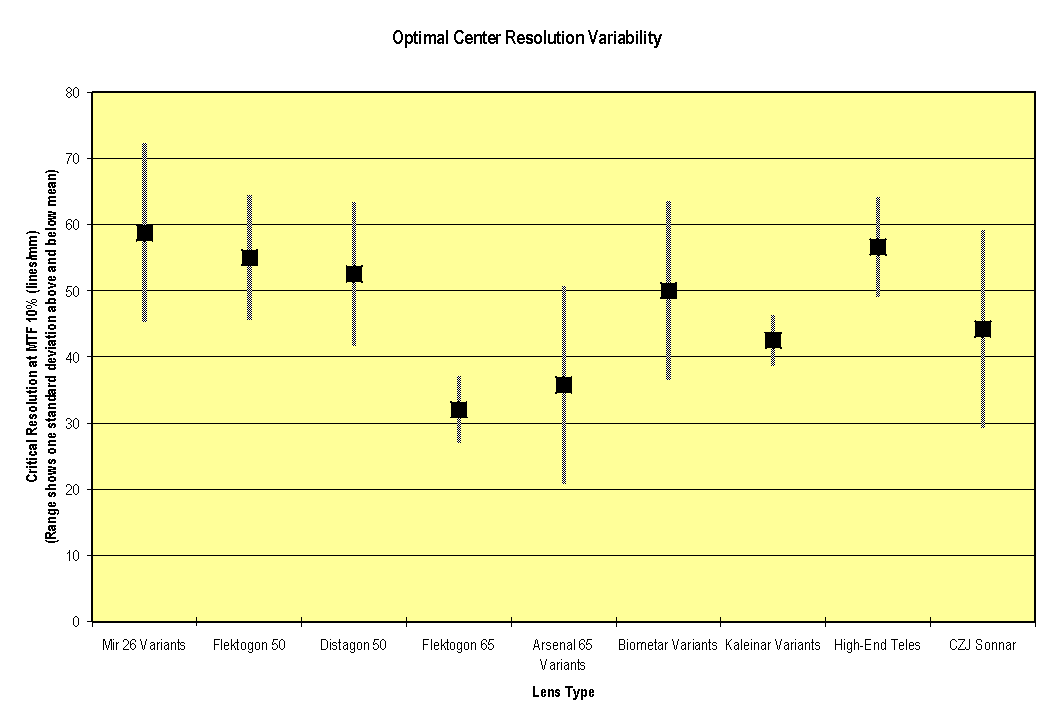

Figure 8. Variability of Ultimate Center Resolving Power.

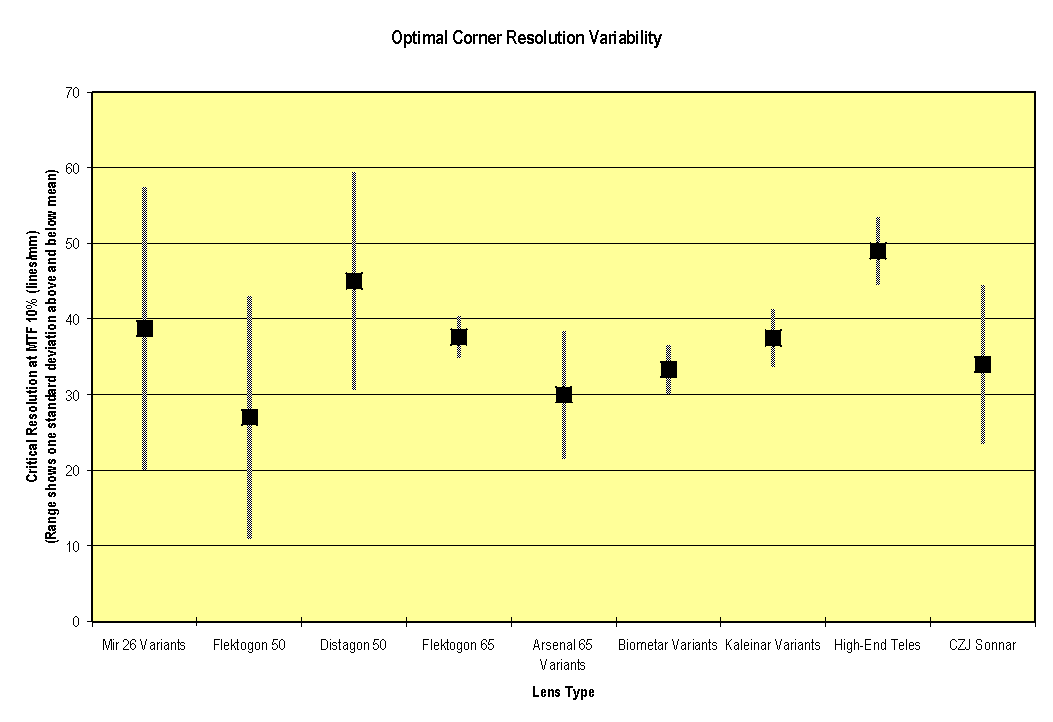

Just for completeness, Figure 9 shows the variability of corner ultimate resolving power at f/8. The only noteworthy result is that variability in corner performance is far greater in strong wide-angle lenses than in normal and telephoto lenses. The high-end strong wides were no exception, either.

Figure 9. Variability of Ultimate Corner Resolving Power.

By Production Year

Finally, one old myth has it that Zeiss Jena did better work in the early years than in later years. We have heard many stories that Jena technicians had sunk so low in terms of morale, and were scrounging for parts in the later years, that I included a test to determine if production year was in any way correlated with lens performance. Those correlations are shown in Figure 10.

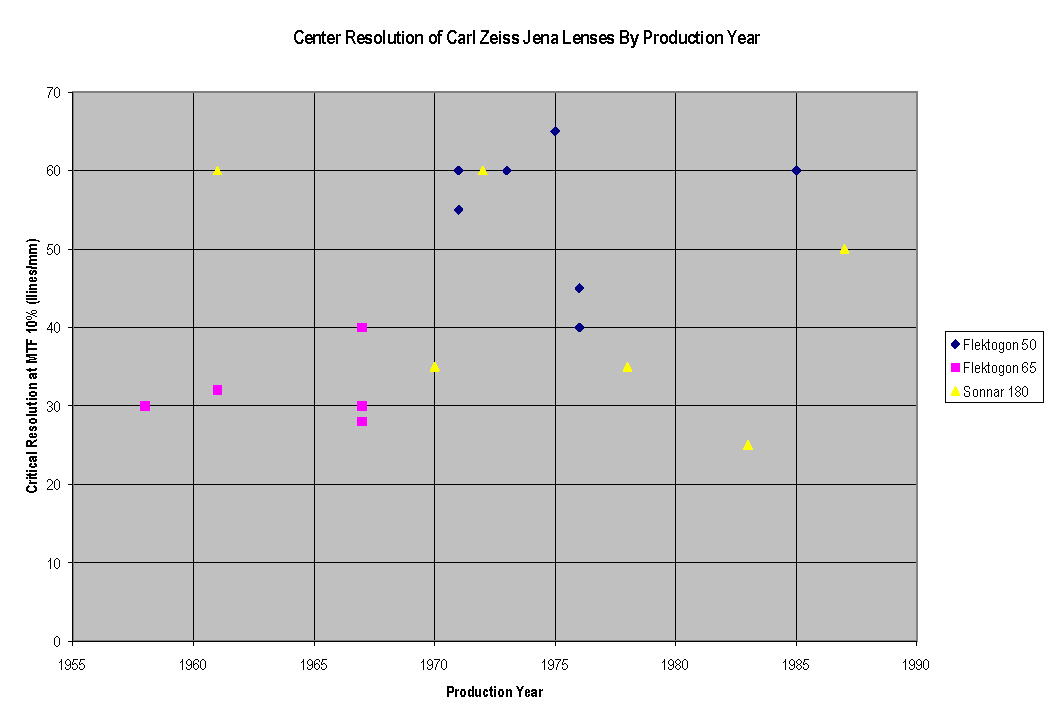

Figure 10. Center Resolution by Production Year.

All the 65mm Flektogons are old, and two of them had been multicoated and reworked in recent years. The Jena Sonnars ranged in production from 1961 to 1987. And so on. But it didn’t matter; there is no correlation at all between production year and ultimate center resolving power.

As Figure 11 shows, there is also no correlation between production year and apparent central sharpness or contrast.

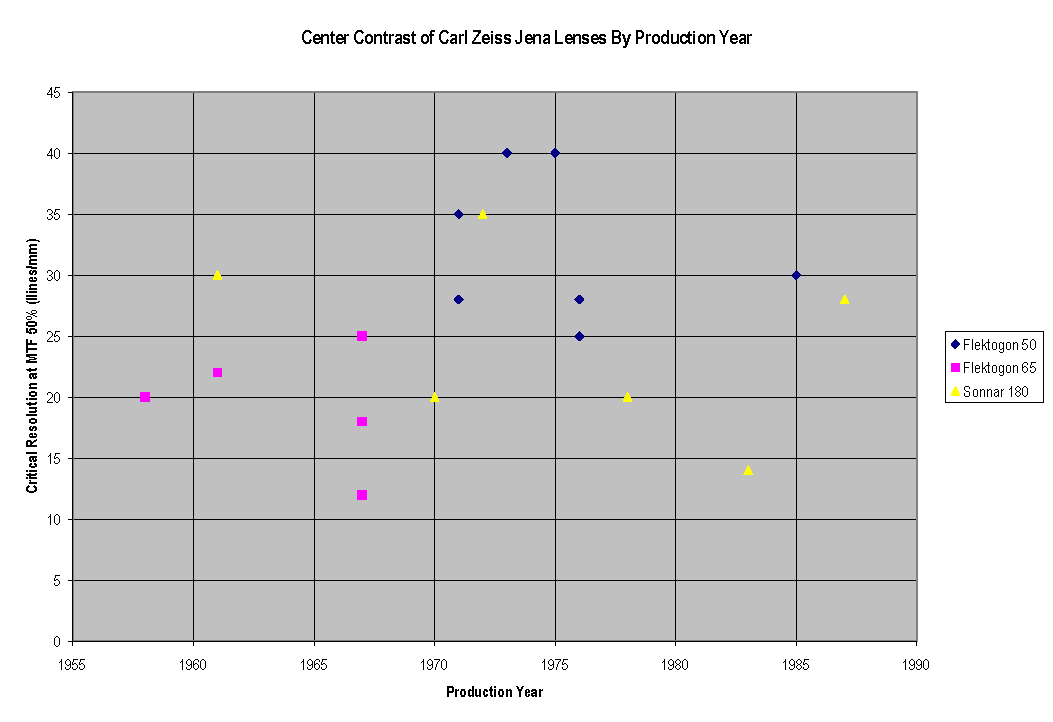

Figure 11. Center Contrast by Production Year.

Comparison of Eastern-Bloc Lenses with Western High-End Lenses

One of the objectives of the test was to compare lenses from the Second World to lenses from the First World. To illustrate this comparison, Figure 12 shows average performance of various lens groups compared with an acknowledged first-quality lens or group of lenses. The 45mm Mir-26 variants and the 50mm Flektogons were compared with 50mm Distagons as a group. The 65mm Ukrainian and East German lens groups were compared with the Schneider Curtagon 60mm lens. The 80mm Biometars as a group were compared with the 80mm Zeiss T* Planar for the Hasselblad. The Kaleinar and CZJ Sonnar groups were compared with the Zeiss Oberkochen and Schneider teles as a group.

Figure 12 also demonstrates some design strategies on the part of the designers. Clearly, the design objective of Zeiss Jena in wide-angle lenses was to produce excellent center performance at the expense of corner performance, while the objective of later western designers was to provide more even performance across the frame. This effect is visible with the strong wide-angle lenses, both the Ukrainian Mir-26 variants and the Zeiss Jena Flektogon 50mm lenses.

The 65's did not measure up to western lenses, as represented by the Schneider Curtagon. They did better with respect to the Schneider Curtagon at MTF 50 than at MTF 10, and thus were probably optimized more for contrast than ultimate resolution.

The Eastern-Bloc telephotos were also not up to the standard of the western telephotos, as we have seen before. But they are more even in comparison with them, reflecting no significant difference in design objective.

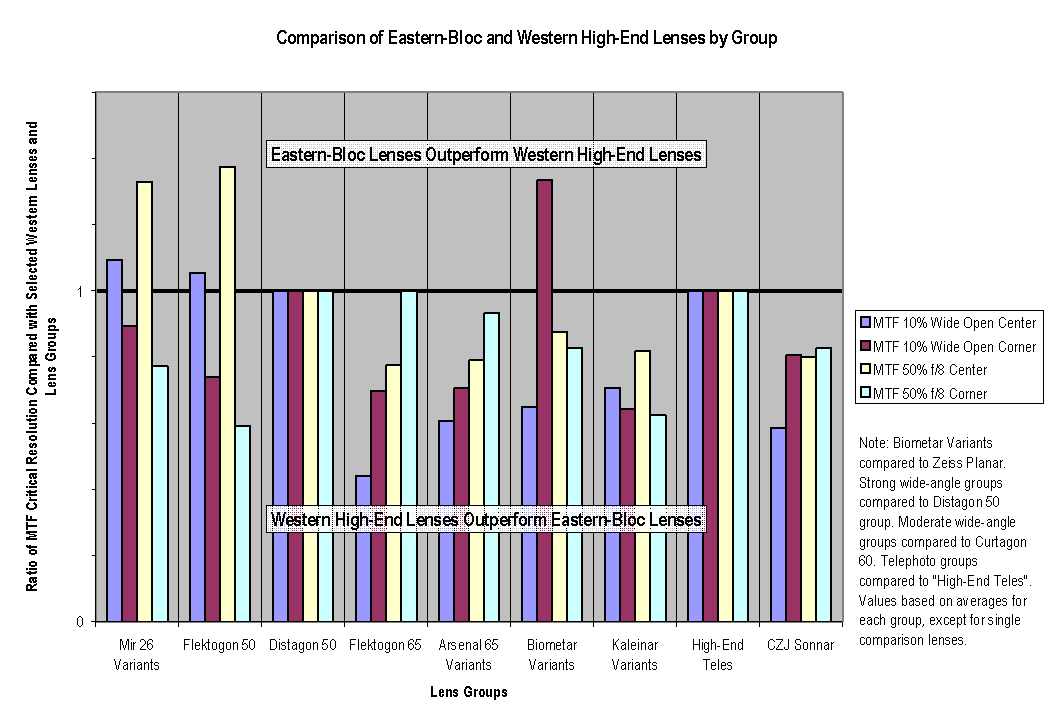

Figure 12. Comparison of Eastern-Bloc lenses with western high-end lenses.

Subjective Testing

Stay Tuned. This section will be completed once the  images are scanned and evaluated.
